OGN-03-VLNA R4 - Very Low Noise Amplifier designed for OGN Base Stations
WolenAG OGN Receiver located in north Poland, managed by Aeroklub Gdański
- Latitude: +53.823510
- Longitude: +18.538523
- Elevation: 172m AMSL
Current receiver setup:
- Antenna: short, 70cm long, low gain chinese antenna located at 18 meters AGL
- But soon it will be replaced by a longer one with higher gain! :)
- LNA: TMA OGN-03-VLNA
- DVBT Dongle: RTL-SDR v2 with RT820T2
- SBC: Raspberry Pi 3

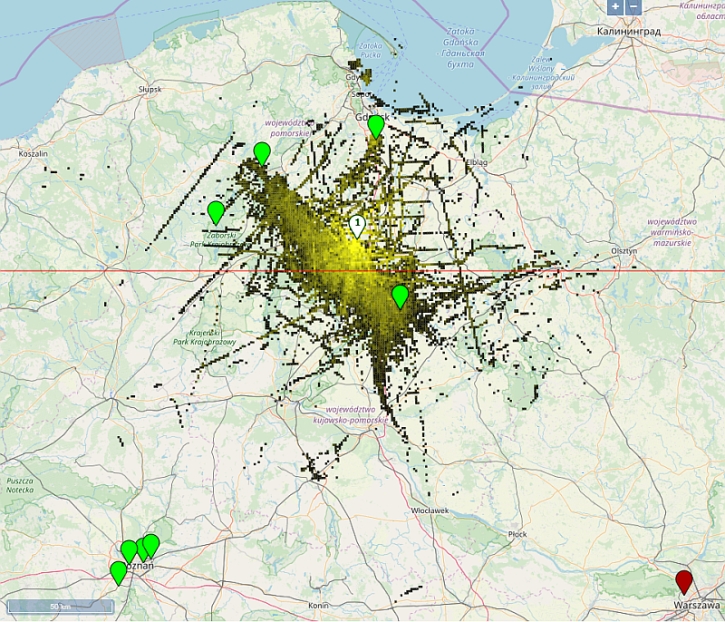

Performance (up to 2019.09.03):
- Maximum reception distance so far: 176.5 km
(C) 2019, Kołek Szymon. Contact: simon(at)glidersim.com
