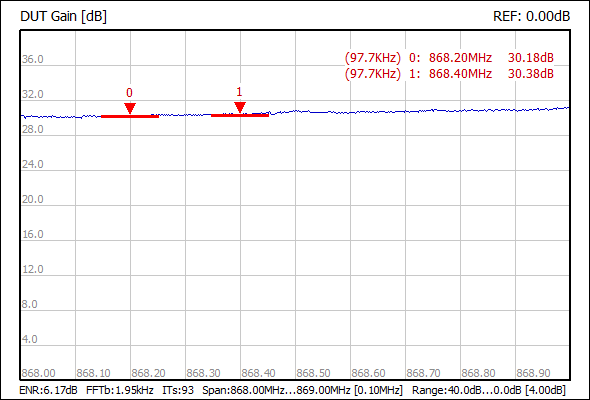

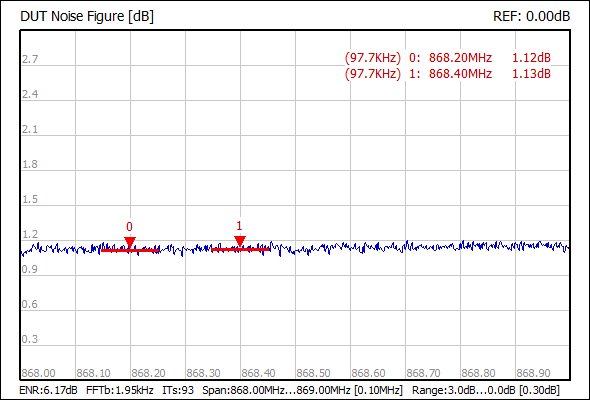

| Narrowband: LNA gain | Narrowband: LNA noise figure | ||||
 |
 |
||||

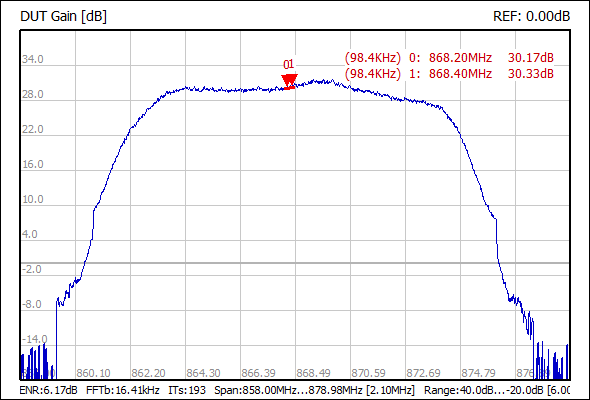

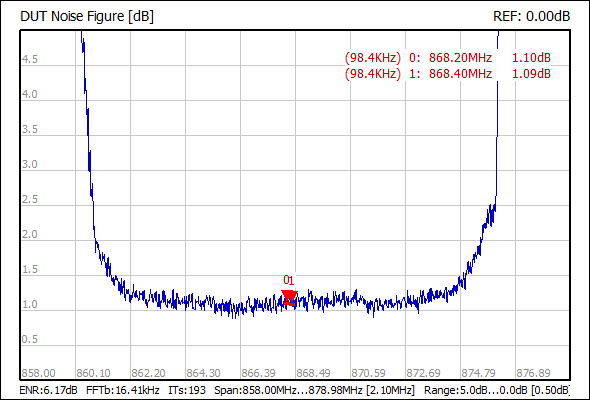

| Wideband: LNA gain | Wideband: LNA noise figure | ||||
 |
 |
||||
|

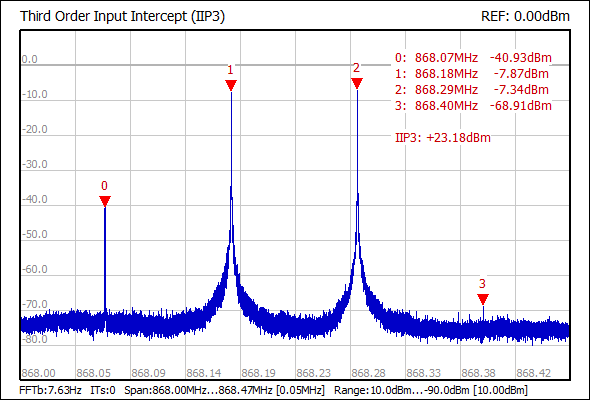

First stage third order input intercept (IIP3). This stage is responsible for GSM/LTE signals blocking with the lowest possible IMD products, while maintaining a relatively low LNA noise figure. |

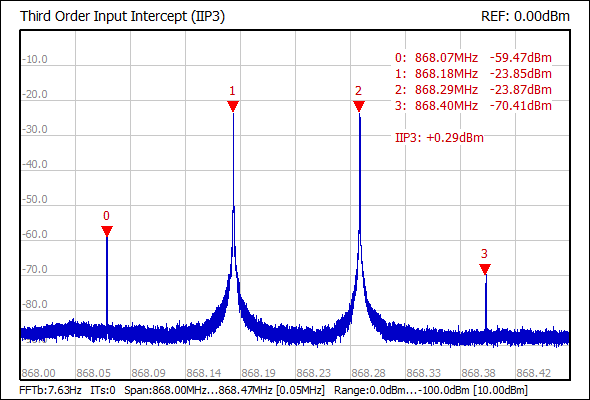

LNA overall third order input intercept (IIP3) in the ISM868/OGN band. | ||||
 |
 |
||||

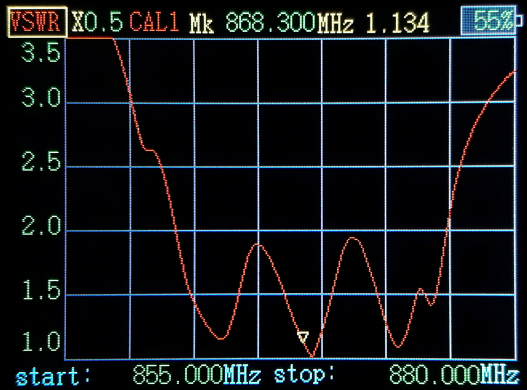

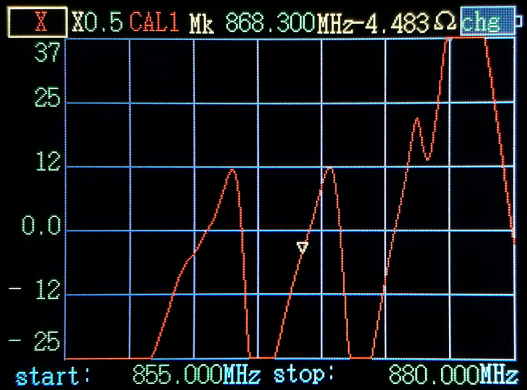

| LNA input VSWR. Output port terminated with 50Ω impedance | LNA input reactance. Output port terminated with 50Ω impedance | ||||
 |
 |
||||

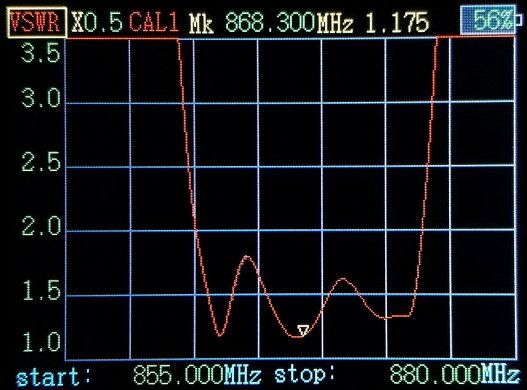

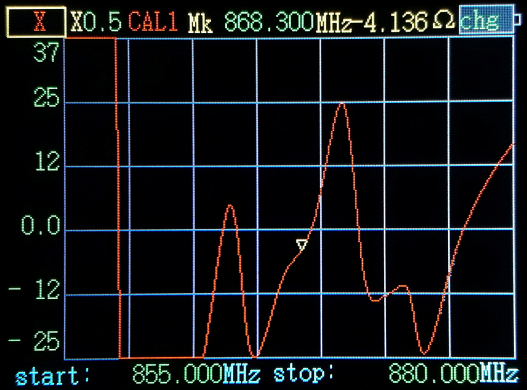

| LNA output VSWR. Input port terminated with 50Ω impedance | LNA output reactance. Input port terminated with 50Ω impedance |
