OGN related projects

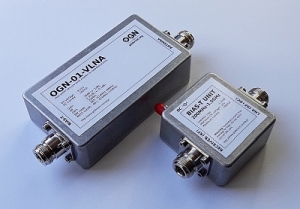

OGN-01-VLNA     OGN-01-VLNA: Very Low Noise, narrow band, high linearity amplifier designed for OGN base stations
  • High performance, double stage GaAs pHEMT amplifier
  • Tower mounted (TMA)
  • Power supply: 9-15V, 100mA (separate power supply required)
  • Dedicated Bias-T unit with strong RF filtering

  • Gain: +28dB
  • NF: 0.35dB
  • OIP3: +29dBm

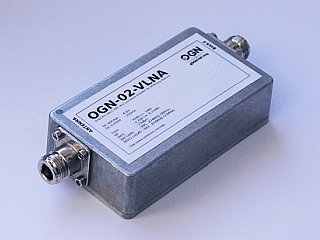

OGN-02-VLNA     OGN-02-VLNA: Very Low Noise, narrow band, high linearity amplifier designed for OGN base stations
  • High performance, double stage QUBiC4X SiGe:C HBT amplifier
  • Tower mounted (TMA)
  • Power supply: 4-6V, 150mA

  • Gain: +30dB
  • NF: 1.2dB
  • OIP3: +33dBm
OGN-03-VLNA R4     OGN-03-VLNA R4: Very Low Noise Amplifier designed for OGN Base Stations
  • Double stage discrete amplifier
  • Tower mounted (TMA), weatherproof
  • IP65 seal
  • Power supply: 4-6V, 140mA
  • Dedicated Bias-T unit with strong RF filtering in the DC path

  • Gain: +30dB
  • NF: 1.1dB
  • LTE800/GSM900 Third Order Input Intercept (IIP3): +23dBm
  • ISM868 band Third Order Input Intercept (IIP3): 0dBm
Micro OGN tracker     Micro OGN tracker
